THRU-HULLS WITH INOX FLANGE
0.00฿

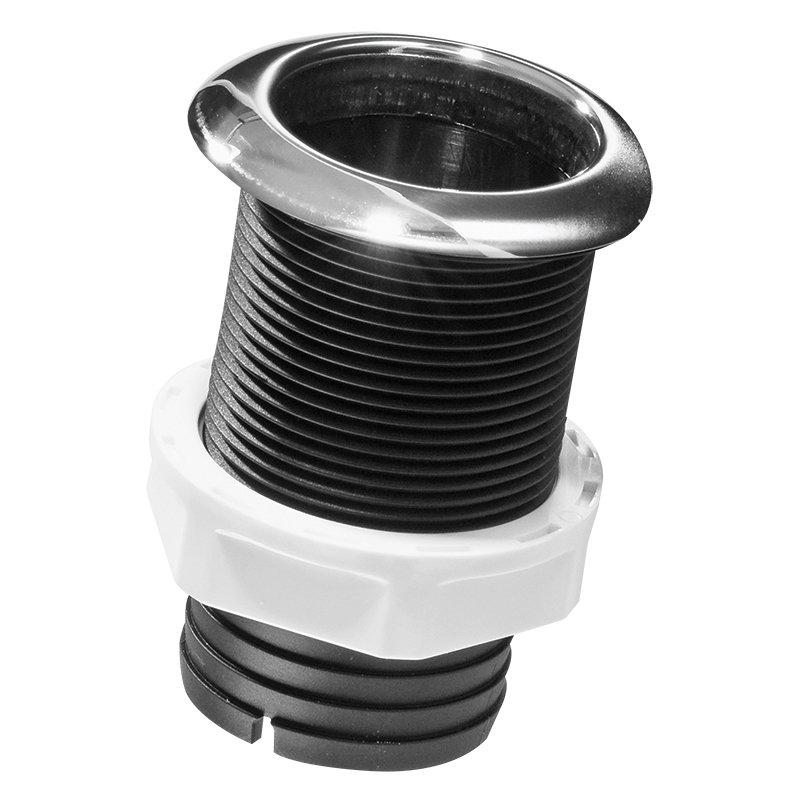

Thru-Hulls with Inox Flange
—Colour: Inox 316
—Material: PA
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE

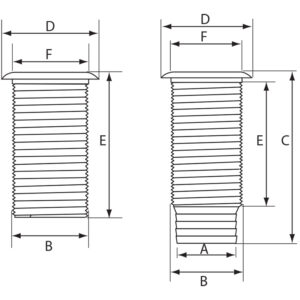

Product Dimensions
| Code | Thread Diameter Ø A (inch) | Hose Ø B (mm) | Overall length C (mm) | Flush Flange Ø D (mm) | Thread Length E (mm) |
| 197218 | 3/4″ | 19 | 82 | 40 | 43 |
| 197001 | 1 1/2 “ | 38 | 87 | 64 | 56 |
| 197002 | 1 1/2″ | 45 | 87 | 64 | 56 |
| 197009 | 1 1/2″ | 38 | 117 | 64 | 86 |
| 197010 | 1 1/2″ | 45 | 117 | 64 | 85 |
| 197015 | 2″ | 51 | 122 | 72 | 56 |
| 197021 | 2″ | 51 | 167 | 72 | 100 |
| 197016 | 2″ | 55 | 122 | 72 | 55 |
| 197022 | 2” | 55 | 167 | 72 | 100 |
