TENDER WINCH- RECOVERY CAPSTAN Lofrans’
0.00฿

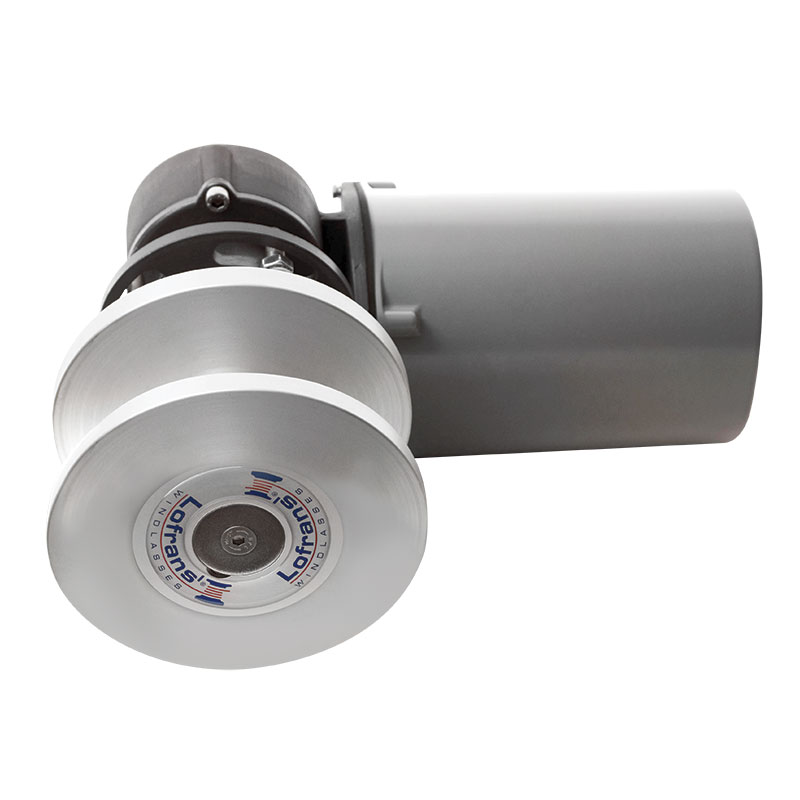

The Tender Winch models are units designed to recover a small tender or a jet ski. They are assembled using a heavy duty electric motor and gearbox, with the motor contained in an IP67 rated cover to be protected from humidity and sea water, and by strong aluminum drum able to contain the necessary belt.
They are available at a power rating of 700 W at 12 V or 24 V.

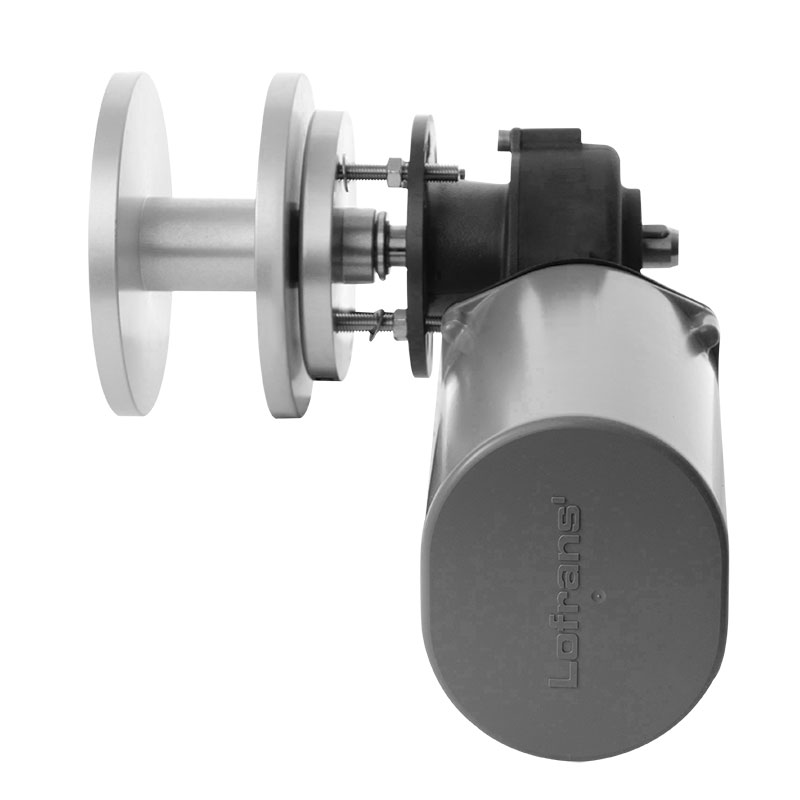

The drum is driven by use of a high torque worm gear box with the gear case made in black anodised marine aluminum. The gears are made of special bronze and steel in order to withstand the high stress during operation.
The top part is made by a simple construction of an anodised marine aluminum for the base and drum, and a stanless steel AISI 4 3 1 shaft.
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE
Tender Winch-Recovery Capstan Lofrans’
| Construction | Marine Anodised aluminium | ||
| Motor size | 500W | 700W | |
| Power Supply (V) | 12V | 12V | 24V |
| Maximum Pull (kg) | 400 | 550 | 600 |
| Working load (kg) | 90 | 125 | 125 |
| Amps at Working Load (A) | 120 | 150 | 80 |
| Line Speed at Working Load (m/min) | 17 | 15 | 15 |
| Max Line Speed (m/min) | 20 | 20 | 20 |
| Net Weight with Drum (kg) | 9 | 9 | 9 |
| Circuit Breaker | Available Separately | ||
| Control Box | Included in package | ||

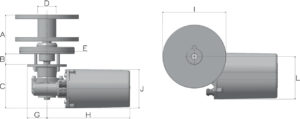

Product Dimensions (mm)
| Model | A | B | C | D | E | G | H | I | J | L |
|---|---|---|---|---|---|---|---|---|---|---|
| 500W | 96 | 18-30 | 124 | Ø40 | Ø114 | 56 | 236 | Ø145 | 110 | 121 |
| 700W | 110 | 18-30 | 124 | Ø53 | Ø156 | 56 | 236 | Ø180 | 110 | 121 |
