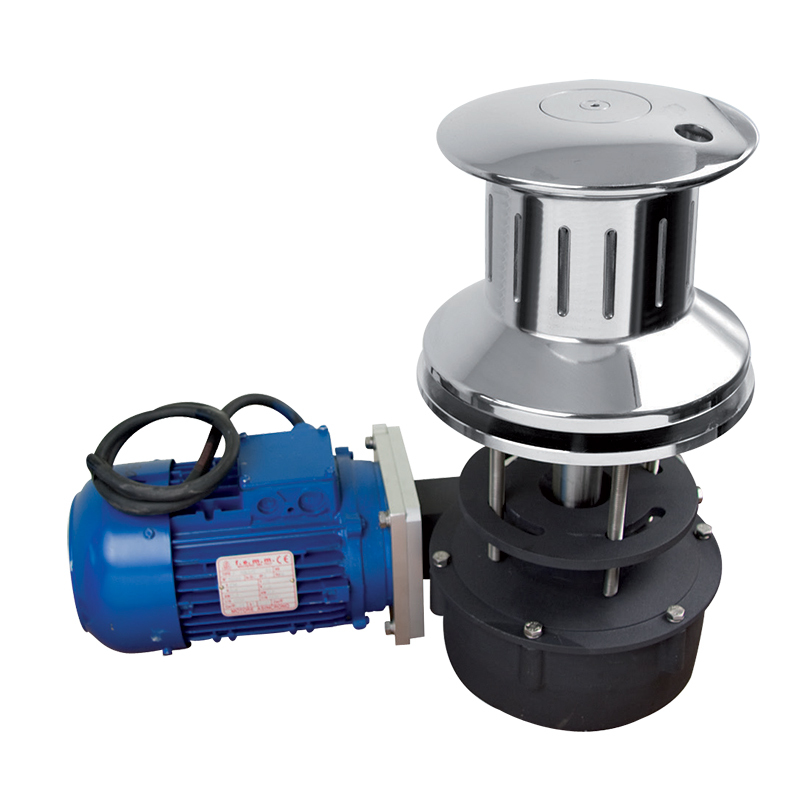

T3000-CAPSTAN Lofrans’
0.00฿
Main Features
♦Luxury 3 16L Stainless Steel base and drum
♦Heavy duty electric motor
♦Anodised marine aluminium gearbox
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE
T3000-Capstan Lofrans’
| Code | 24-00256 | 24-00306 | 24-00308 | 24-00307 |
| Model | T3000 | |||
| Motor Size | 2200W | 3000W | 3600W | Hydraulic -9cc |
| Power Supply (V) | 230-400 | 24 | 24 | – |
| Maximum Pull (Kg) | 2500 | 3000 | 300 | 3000 |
| Working Load (Kg) | 550 | 600 | 600 | 650 |
| Amps at Working Load (A) | – | 210 | 210 | – |
| Line Speed at Working Load (m/min) | 16 | 14 | 14 | 17 |
| Max Line Speed (m/min) | 16 | 27 | 27 | 17 |
| Net Weight with Drum (Kg) | 75 | 75 | 75 | 40 |
| Hydraulic Pressure (Bar) | – | – | – | 200 |
| Hydraulic Flow (lt/min) | – | – | – | 32 |
Product Dimensions (mm)
| Model | A | B | C | D | G | H | I | J | L |
|---|---|---|---|---|---|---|---|---|---|
| T3000 | 206 | 60-90 | 190 | Ø150 | 142 | 436 | Ø255 | Ø152 | 190 |
