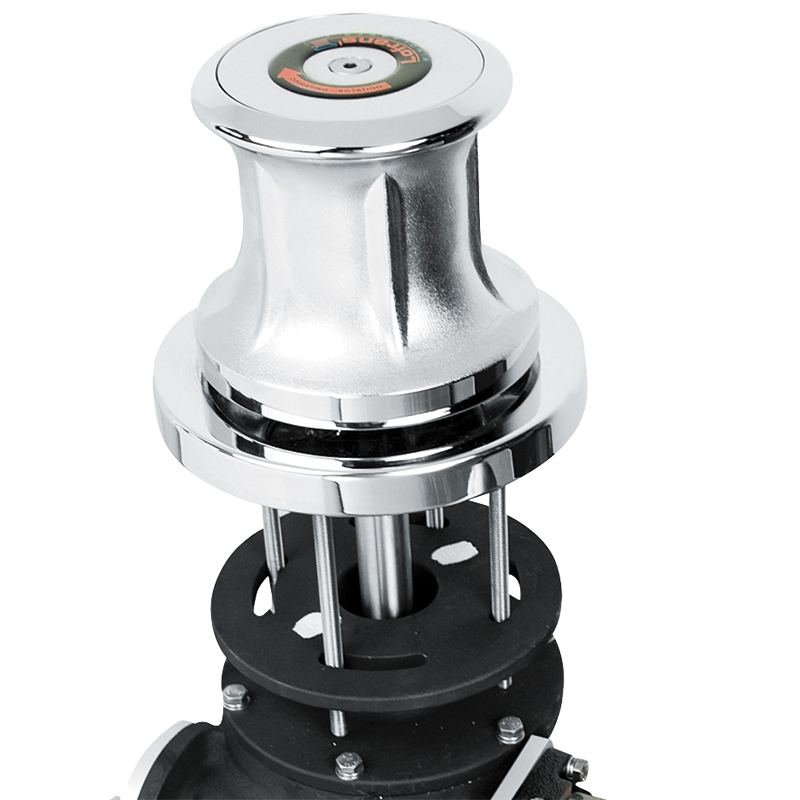

T2500-CAPSTAN Lofrans’
0.00฿
Main Features
♦Luxury chromed bronze construction base and drum
♦Heavy duty electric motor
♦Anodised marine aluminium gearbox
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE
T2500-Capstan Lofrans’
| Model | T2500 | ||
| Motor size | 2200W | 2700W | Hydraulic-9cc |
| Type** | cw | cw | cw |
| Power Supply (V) | 230-400 | 24 | – |
| Maximum Pull (kg) | 2000 | 2200 | 2300 |
| Working load (kg) | 425 | 425 | 550 |
| Amps at Working Load (A) | – | 210 | – |
| Line Speed at Working Load (m/min) | 15 | 15 | 15 |
| Max Line Speed (m/min) | 15 | 31 | 15 |
| Net Weight with Drum (kg) | 52 | 53 | 40 |
| Hydraulic Pressure (bar) | – | – | 200 |
| Hydraulic Flow (lt/min) | – | – | 32 |
| Control Box | Switchboard available separately | Included in package | – |

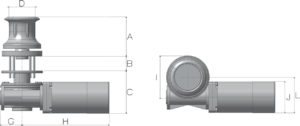

Product Dimensions (mm)
| Model | A | B | C | D | G | H | I | J | L |
|---|---|---|---|---|---|---|---|---|---|
| T2500 | 191 | 90-130 | 212 | Ø125 | 105 | 420 | Ø230 | Ø152 | 172 |
