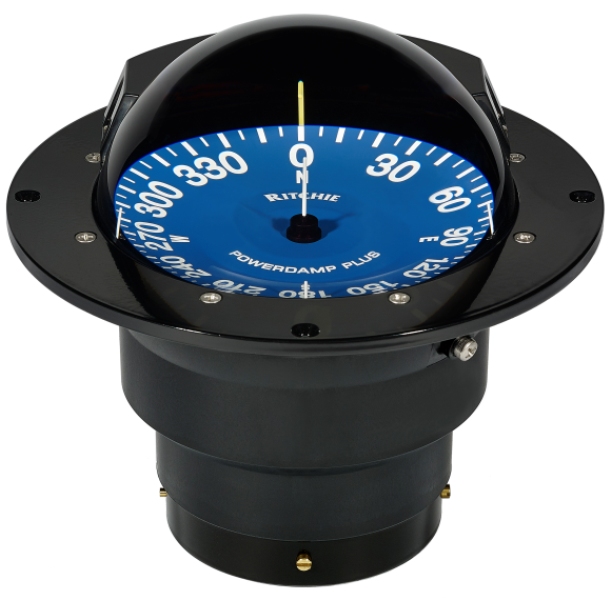

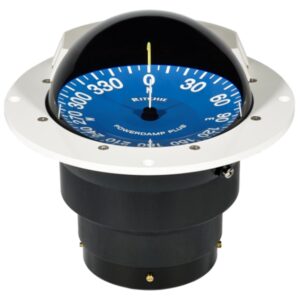

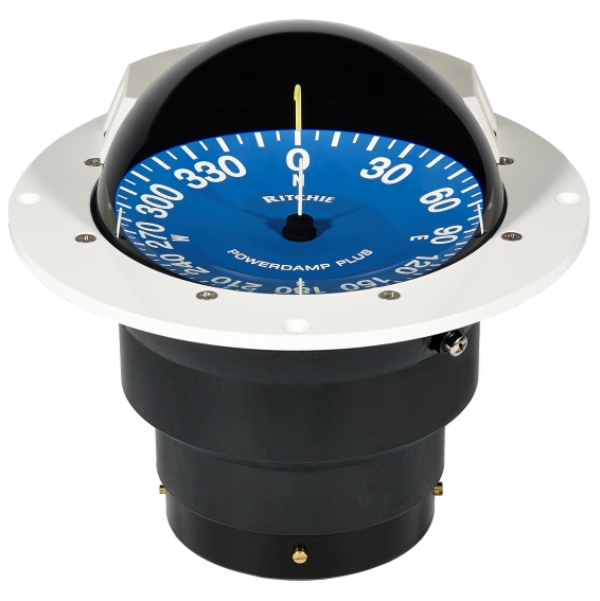

SUPERSPORT FLUSH MOUNT 5″

Supersport™ Compasses

Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial.  This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

• 5″ PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals
• Easily Installed, Fits 6 1/4″ (15.88 cm) Mounting Hole.
• Built-in Compensators to Easily Adjust for deviation
• Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
• 12V Green LED lighting Standard
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Protective Cover: LL-C

Replacement Lighting Kits:

• (12V Green)CS-0002 KIT
• (12V Red)CS-0003 KIT

12 volt lighting standard – 24 & 32 volt lighting options are available.

Mounting Gasket: 5G-0043

Approx. Shipping Weight: 5 lbs 12 oz (2.6 kg)

NOTES: SS-5000s built prior to 1992 may have used different replacement lighting. See service manual pages 7-32 & 7-33 or contact our Service Department at 781-709-3202.
