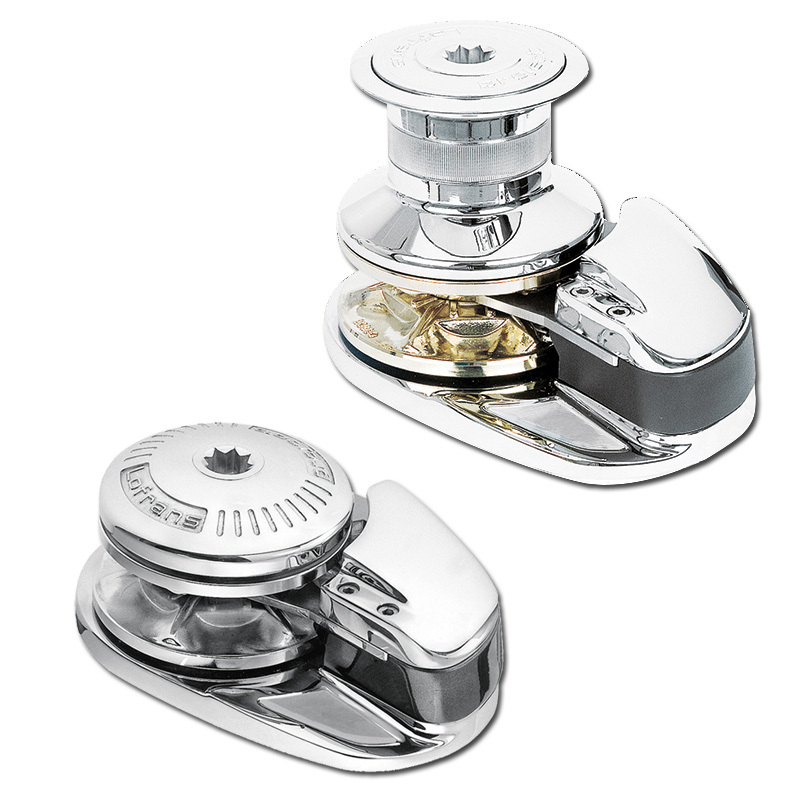

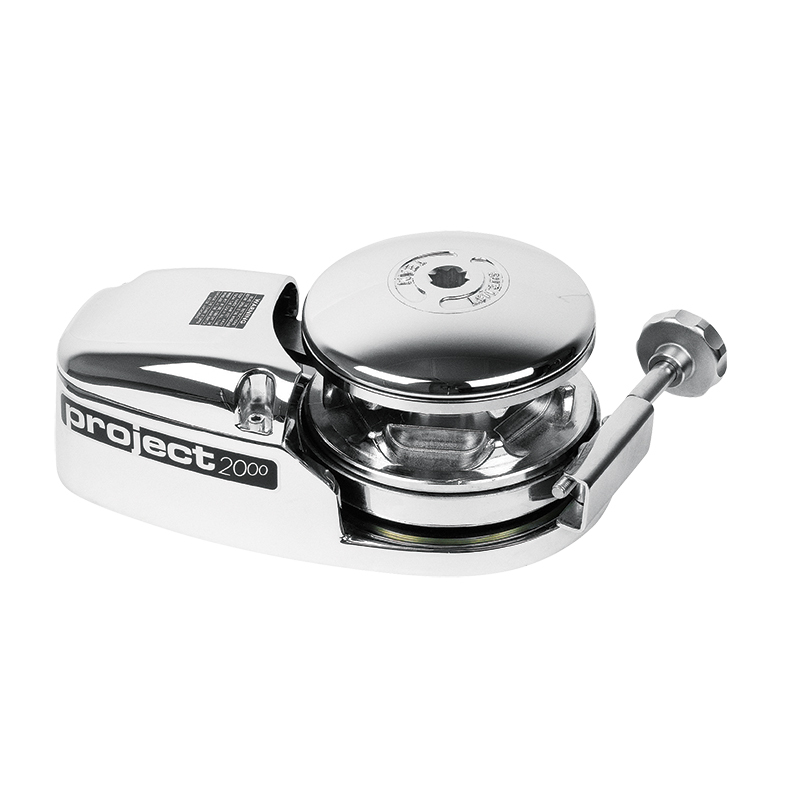

PROJECT 2000- VERTICAL WINDLASS Lofrans’
0.00฿
2000W
The “Project” windlasses are suitable for sail and motor boats from 6m to 27m in length. These windlasses are considered to be an elite product line as they are developed to provide high performance, easy installation and maintenance. Another feature that is a milestone for Lofrans’ is the internationaly pattended motor which includes two solenoids, plus the sensor and magnet for an easy connection to the chain counter.
The motors of the Project windlasses are designed specifically to provide high torgue in every anchoring situation and their anchoring power can reach 45m / min. In case of function failure of the solenoids, there is the ability to bypass the solenoid with a connection to the terminal “E” and lift up the anchor.
All motors have IP66 rate, their body has double zincates and they are painted with a polyester coating. Also, they are sealed by a sequence of seals in order to prevent water intrusion.
Main Features
—Luxury chromed bronze base and drum
—Special watertight stainless steel ball bearing in the base
—With drum or Low profile
—Indepent Gypsy and drum operation
—Manual chain release
—Manual override available for chromed bronze models only
—Chain counter magnet pre-installed as standard
—Anodised marine aluminium gearbox
—Heavy duty two speed buit in solenoids electric motor
—Control Box build in
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE
Project 2000W- Vertical Windlass
Product Description
| Contruction | Chromed bronze |
| Motor Size | 2000 W |
| Power Supply (V) | 24 |
| Maximum Pull (kg) | 2100 |
| Working load (kg) | 500 |
| Amps at Working Load (A) | 160 |
| Line Speed at Working Load (m/min) | 13 |
| Max Line Speed (m/min) | 25 |
| Net Weight Low Profile (kg) | 76 |
| Net Weight with drum (kg) | 86 |
| Circuit Breaker (available separately) | 187333 |
| Control Box | Build in |
Product Code
| PROJECT 2000 | Code | |
| With Drum | 12 m, ISO 4565/ 13 mm, DIN 766 | 472749 |
| 14 mm | 473010 | |
| Low Profile | 10 mm, DIN 766 | 600599 |
| 10 mm, ISO 4565 | 600598 | |
| 12 mm, ISO 4565/ 13 mm, DIN 766 | 472748 | |
*Non-standard configuration optional gypsies can be supplied separately.

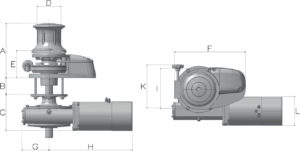

Product Dimensions
| Model | A | B | C | D | E* | F | G | H | I | J | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000W | 285 | 60-130 | 200 | Ø125 | 150 | 380 | 140 | 449 | 220 | Ø152 | 240 | 190 |
*Low Profile height dimensions
Box includes:
*Windlass assembly filled with oil and build in double relay
*Handle or lever
*CD instruction manual
