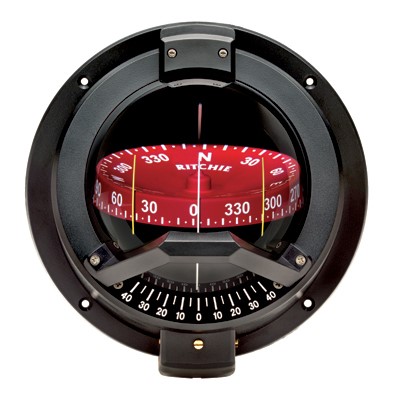

NAVIGATOR BULKHEAD MOUNT

Code: BN-202

Navigator Compass Features

          *4 1/2″ Ritchie CombiDial and Built-in Clinometer

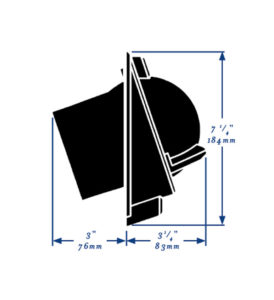

          *Easily Installed, Fits 5.75″ (14.61 cm) Mounting Hole.

          *Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions

          *Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement

          *Fiberglass Reinforced Bowl

          *45 degree Lubber Lines

          *Exclusive Built-in 12 Volt Amber LED Lighting

          *Built-in Compensators to Easily Adjust for Deviation

          *100% Repairable

          *Exclusive 5-Year Ritchie Warranty

Protective Cover:

• Front Cover BN-C
• Back Cover NC-20

Replacement Lighting:

• Upper Asy.: NV-0045 XSP
• Lower Asy.: NV-0044 XSP
• Lower light Housing: NV-0047

Mounting Gasket: NV-0023

Approx. Shipping Weight: 2 lbs. 5 oz. (1.05 kg)

Notes: Comes standard with 12V lighting. For boats with 24 or 32 volt systems, dropping, resistors are available.

For Navigators built before 1986 please see the service manual page 6-12 or contact Ritchie for replacement lighting.
