GALAXY 503

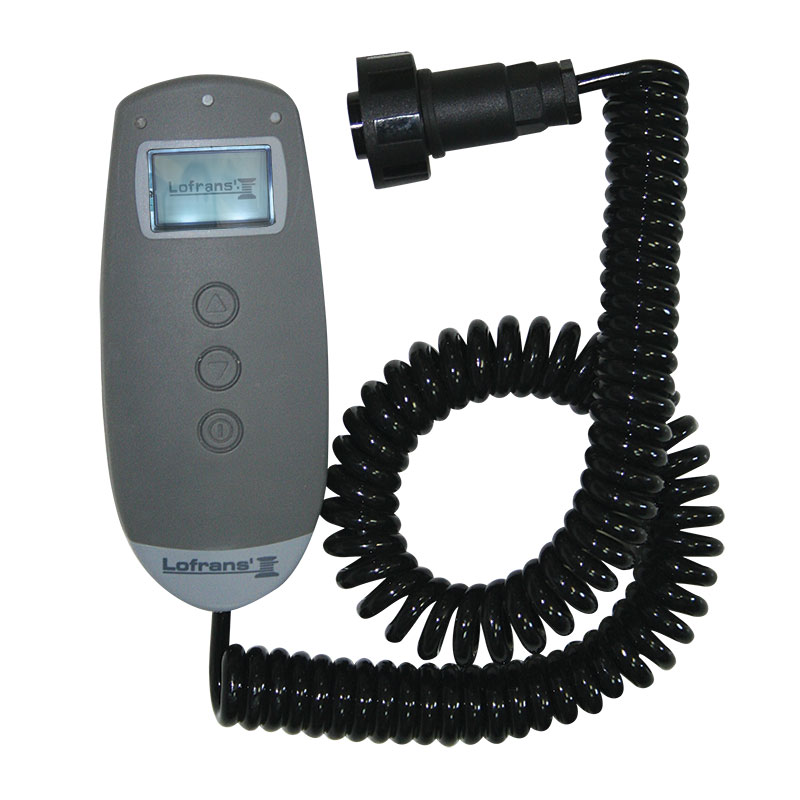

Hand Held Remote Control Chaincounter GALAXY 503

This remote chain counter model GALAXY 503 has been specifically designed to give the full control in anchoring. It’s reliable and practical instrument, technologically advanced, specifically design for use in marine environments. The external casing, rated with IP66 and supplied with waterproof plug and socket rated IP67. The extending flexible cable (approximately 4 meter) give maximum freedom on board during anchoring maneuvering. Provided with an evolved microprocessor that offers the series of advantage for full control of the anchoring.

—Chain speed indicator/ mooring length in meters or feet

—Voltage Indicator

—Up alarm sensor

—Switch on button/ Key tones adjustment

—High vision LCD display/ Backlit display screen/ Eight level of contrast

—Six language menu (IT, EN, FR, DE, ES, GR)

—Able to control free fall windlasses

—Parallel connection

Product Description

Code                                                                                       600015

Command transmission                                                    Wire

Number of button                                                                 3

Voltage                                                                            12-24Vdc

Operative temperature                                                   -10: +60

IP protection rated*                                                             66

Max contacts amperage (A)                                                 2

Weight (gr)                                                                           710

Dimension (mm)                                                             155x65x45
