FAROS 7

Port- Starboard- Stern- Masthead- Bicolor Lights

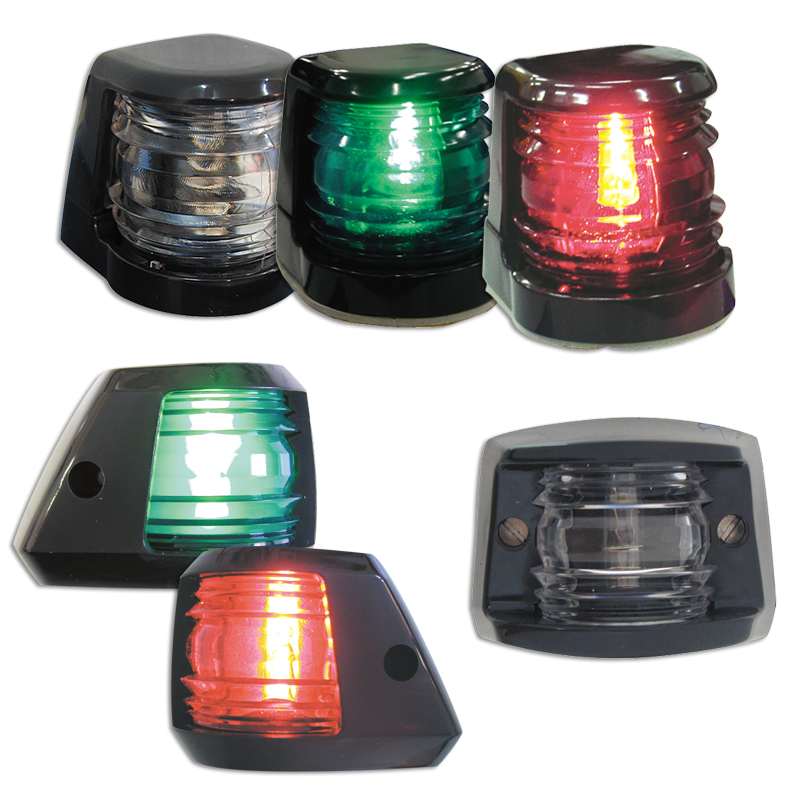

The Faros 7 series of navigation lights, Including masthead, side and stern lights, is ideal mainly for powerboats up to 7m. They are waterproof, non corrosion and non magnetic. Material: Made of nylon fibre mix housing and shatterproof plexiglass (PMMA) lens. Housing: Available in black housing. Seal: Nitrile water resistant. Installation: Vertical & horizontal mounted. They are mounted on the surfaces with wall plugs. Navigation lights with wall plug have the advantage that they are much easier to mount and you only need to open one hole. This range is provided with a two sided adhesive tape and flange, which by sticking it on the surface you know exactly where to open the hole and the flange is already in the correct place. Visible distance: Port – Starboard – Bicolor: 1nm / Stern – Masthead: 2nm. Contacts: Brass. Bulb (included): 12V / 5W

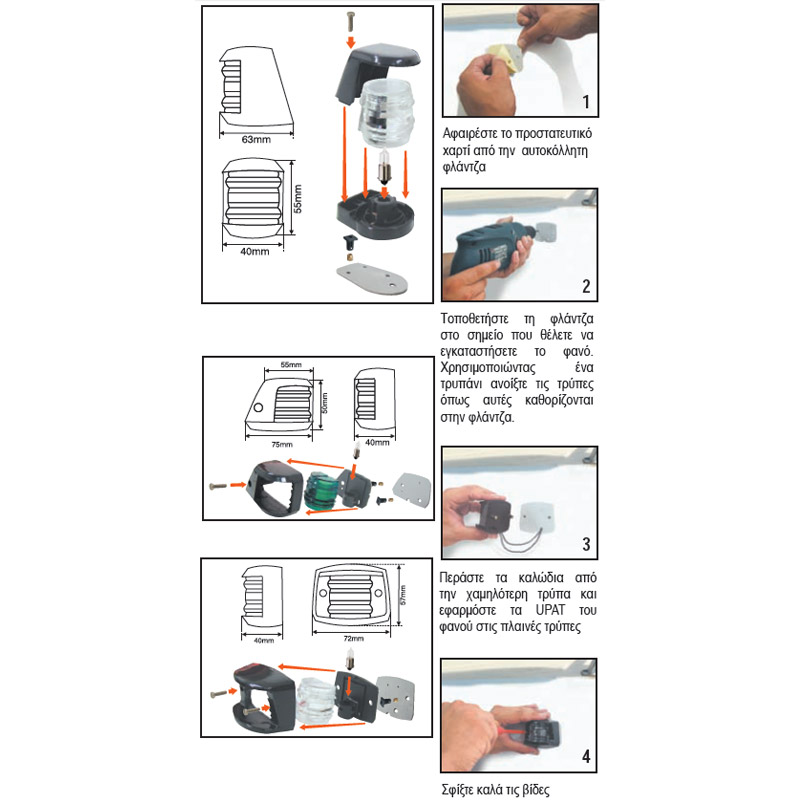

Instructions:

1. Remove the protective paper from the self adhesive flange
2. Attach the flange at the point you want to place the light and open the holes using a drill
3. Pass the wires through the lower hole and fit the light’s rawl plugs in the side holes
4. Screw until the rawl plugs are secured

Code	30864	30865	31051	31052	30861	30862	30863
Description	Masthead White 225°	Bi-colour 225°	Starboard Green 112,5° Horizontal	Port Red 112,5° Horizontal	Starboard Green 112,5º	Port Red 112,5°	Stern White 135°
Images
Housing	Black
