CT60 ELECTRIC TUNNEL THRUSTER
0.00฿

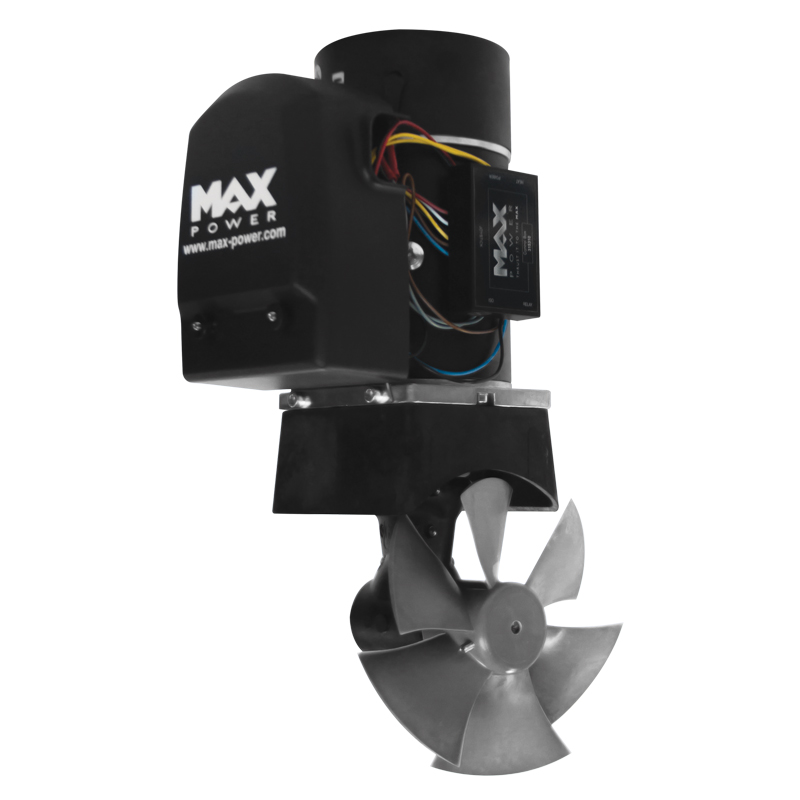

CT-60 Electric Tunnel Thruster
Available in 12V or 24V, the CT60 is suited to motor boats and deep footed sailing yachts between 20’-40′.
Manufactured using composite materials, the CT60 is a single propeller thruster with a 185mm diameter tunnel and thrust rating up to 60/132 (kg/lbs) on the 12V model, or 60/143 (kg/lbs) on the 24V model.
Integrating the unique features common to the Max Power electric tunnel thrusters range, the CT60 is fitted as standard on a large variety of yachts.
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE
CT60 Electric Tunnel Thruster
| Code | Voltage | Thrust (kg/lbs) | Propellers | Power (kw/hp) | Weight (kg) |
| 42530 | 12V | 58/128 | Mono | 4.35/5.8 | 14.7 |
| 42531 | 24V | 63/139 | Mono | 4.4/5.9 | 14.8 |

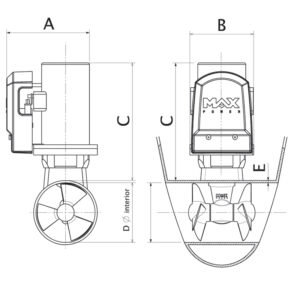

Product Dimensions in (mm)
| Model | A | B | C | D | E |
| CT60 | 210 | 140 | 275 | 185 | 6-7 |
