CT35 ELECTRIC TUNNEL THRUSTER
0.00฿
CT35 Electric Tunnel Thrusters
Code: 42529

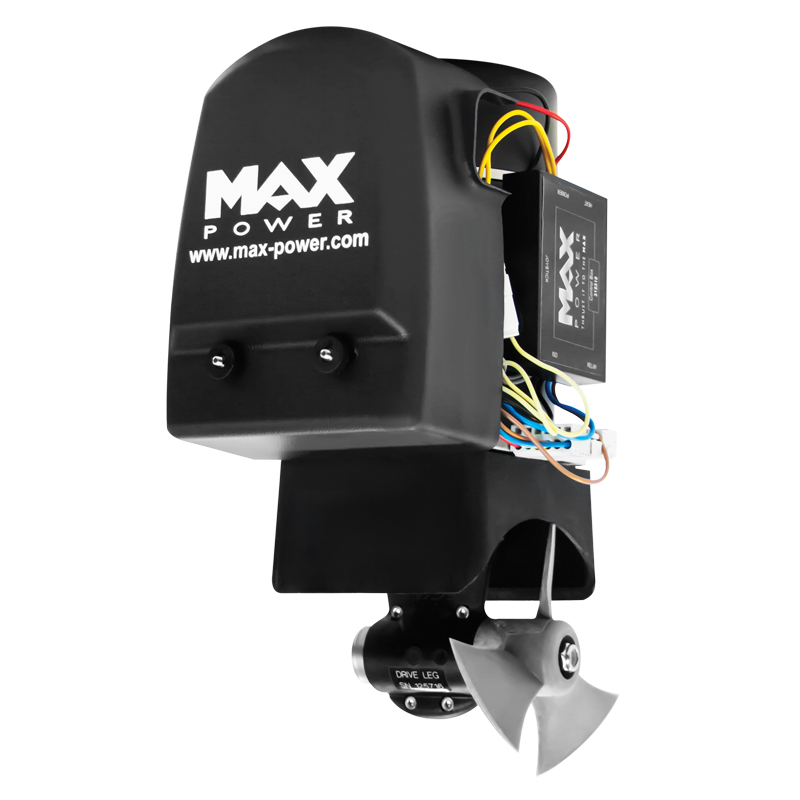

Manufactured using composite materials, the CT35 is a single propeller thruster with a 125mm diameter tunnel and thrust rating up to 35/75 (kg/lbs).
The smallest in the Max Power electric tunnel thruster range, the CT35 is ideally suited to motor boats and deep footed sailing yachts that are between 17’-34′.
Like all Max Power electric tunnel thrusters, the CT35 is easy to install, maintenance free, and integrates all the unique features common to this range.
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE
CT35 Electric Tunnel Thruster
Product Description
| Voltage | Thrust (kg/lbs) | Propellers | Power (kw/hp) | Weight (kg) |
| 12V | 35/77 | Mono | 2.69/3.6 | 9.6 |

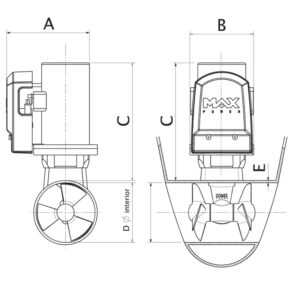

Product Dimensions in (mm)
| Model | A | B | C | D | E |
| CT35 | 190 | 140 | 210 | 125 | 4-5 |
