CT100 ELECTRIC TUNNEL THRUSTER
0.00฿

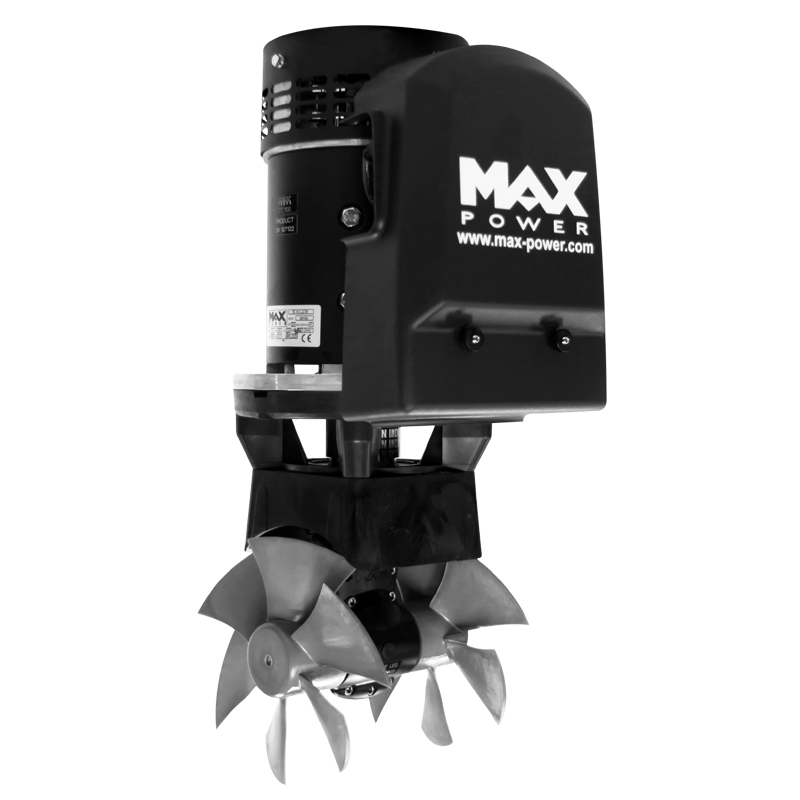

CT100 Electric Tunnel Thruster 12V
The 12V, twin propeller CT100 suits a wide range of motor boats and deep footed sailing yachts ranging from 30’-53’. This composite thruster has a tunnel diameter of 185mm and a thrust rating up to 90/198 (kg/lbs).
The CT100, like all Max Power electric tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates all the unique features of this range
* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / – 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE
CT100 Electric Tunnel Thruster 12V
| Code | Voltage | Thrust (kg/lbs) | Propellers | Power (kw/hp) | Weight (kg) |
| 25-00029 | 12V | 96/212 | Duo | 7.1/9.5 | 24 |

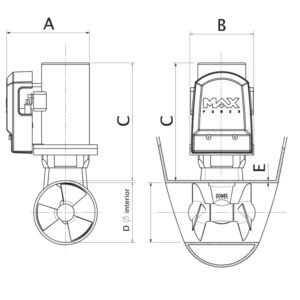

Product Dimensions in (mm)
| Model | A | B | C | D | E |
| CT100 | 250 | 200 | 365 | 185 | 6-7 |
