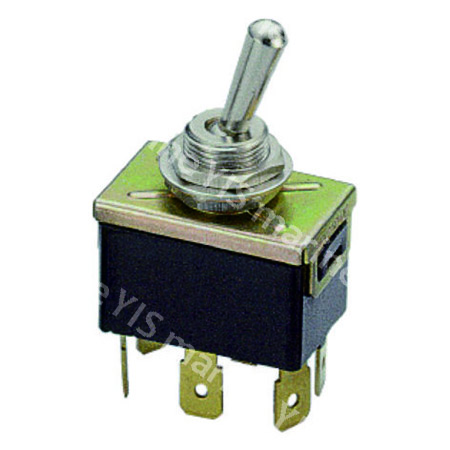

BRASS TOGGLE SWITCH (T1330)
0.00฿
Out of stock
ต้องการใบเสนอราคาติดต่อฝ่ายขายได้ที่ Line: @gtmmarine
- Facebook page: GTM MARINE
Heavy Duty Brass Toggle Switch Series
Heavy Duty Toggle Swtiches widely used in marine applications. These brass toggle switches come in several switch functions and carries currents as high as 15A.
Features
- Current rating up to 15A (@12V DC)
- Robust and durable toggle design
- Available in PC (Quick) Terminals or Screw Terminals
- Series-specific nameplates and rubber boot available
Specification
- Rating (AC) | 125V 15A / 250V 10A
- Rating (DC) | 12V 15A / 24V 10A
- Contact R. | 50mΩ Max.
- Insulation R. | DC 500V 100MΩ Min.
- Dielectric Strength | AC 1500V 1minute
- Electrical Life | 50,000 make and break cycles at full load
Product Coding
| Product ID | Type | Switch Function |
|---|---|---|
| T-1325 | SPST | ON -OFF |
| T-1325M | SPST | (ON)-OFF |
| T-1327 | SPDT | ON -OFF-ON |
| T-1327M1 | SPDT | (ON)-OFF-ON |
| T-1327M2 | SPDT | (ON)-OFF-(ON) |
| T-1330 | DPDT | ON -OFF-ON |
(ON): Momentary
