Windlass Control

Showing all 9 results

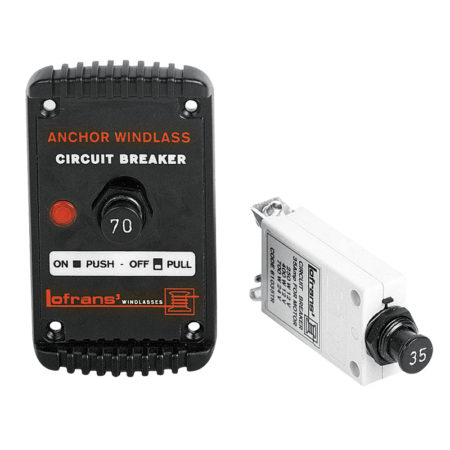

  • CIRCUIT BREAKER STANDARD Lofrans’

    0.00฿

    Thermal: 35A/  70A/  100A/  125A

    Hydraulic: 100A/  40A/  80A

    The thermal circuit breaker is an essential component of the electric plant. It has three functions:

    —protects from very dangerous short circuits

    —protects the electric motor of the windlass

    —interrupts tension to windlass when desired

    In case of short circuit the intervention is immediate.

    Concerning the electic motor a specific intervention curve has been studied in cooperation with E-T-A Germany. It is possible to re-activate the circuit breaker at the end of the intervention. The thermal circuit breaker is supplied with an elegant plaque for fixing and a led light. This unit is in compliance with EEC regulations and homologated by Bureau, Veritas

    Product Code:

    Types 35 A 40 A 70 A 80 A 100 A 125 A
    Thermal 187331 – 187332 – 187333 187334
    Hydraulic – 600029 – 630616 600028 –
    Read moreDone

  • CONTROL SWITCH “TYPE C”

    0.00฿

    Code: 187338

    This rocker switch has modern and practical design. It is reliable and watertight and it is supplied with the opposite case to make simple and sure the installation.



    Read moreDone

  • CONTROL SWITCH “TYPE L”

    0.00฿

    Code: 404728

    This switch, usually installed on the cockpit, is made by a fixing plaque and a three position switch (Up-Off-Down)



    Read moreDone

  • FOOT SWITCH

    0.00฿

    This device is a switch which works simply pushing the foot on the button. The base is in stainless steel while the cover to prevent accidental engagement is in composite. The button is in special marine rubber able to withstand UV ray and the marine environment. Available in UP and DOWN version.

    Code 600012 600011 602121
    Description  Black/Grey UP Red/ Grey DOWN Blue/ WASH DOWN

    Product Details:

    Voltage                                                                                         12-24Vdc
    Operation Temperature                                                              -10:+60
    IP Protection rated                                                                            67
    Max contacts amperage (A)                                                             5
    Weight (gr)                                                                                       100
    Dimensions (mm)                                                                       80x95x2
    Read moreDone

  • GALAXY 102

    0.00฿

    Hand Held Control GALAXY 102

    This hand held remote control model GALAXY 102 has an elegant and functional design. The soft rubber case, which covers sideways the remote control, allows a safe and handy taking under any condition.This hand held remote control is rated with IP66 and supplied with waterproof plug and socket rated IP67. The extending flexible cable (approximately 4 meters) gives the maximum freedom on board during anchoring manoeuvring.

    —Inversion polarity protection

    —Parallel connection

    —2 buttons (up-down)

    Code 600013
    Command transmission Wire
    Number of button 2
    Voltage 12-24Vdc
    Operative temperature -10:+60
    IP Protection rated 66
    Max contacts amperage (A) 2
    Weight (gr) 580
    Dimension (mm) 155x65x45

    *When installed

    Read moreDone

  • RADIO REMOTE CONTROL

    0.00฿

    Lofrans’ radio remote control is designed to work with our range of windlasses. The remote control can also be used to operate other onboard equipment such as thrusters, passerelles, cranes, etc.

    —Transmitter rated IP67

    —Supports up to 8 independently controlled channels

    —Each receiver can switch 4 channels (12/24 V – 2 A)

    —Each transmitter can handle 2 receivers (8 channels)

    —Digital recognition avoids accidental activation of other system

    —Zero power consumption when in standby mode (transmitter)

    —Easy to install and set up, simple to use

    Read moreDone

  • THERMAL CIRCUIT BREAKER SURFACE MOUNTED Lofrans’

    0.00฿
    Thermal Circuit Breaker Surface Mounted

    The thermal circuit breaker is an essential component of the electric plant. It has three functions:

    —protects from very dangerous short circuits

    —protects the electric motor of the windlass

    —interrupts tension to windlass when desired

    In case of short circuit the intervention is immediate.

    2 years Limited Warranty

    Code Types Amps (A)
    636087 Lofrans’ Thermal Circuit Breaker 40A SM 40
    636088 Lofrans’ Thermal Circuit Breaker 70A SM 70
    636089 Lofrans’ Thermal Circuit Breaker 100A SM 100
    636090 Lofrans’ Thermal Circuit Breaker 110A SM 110
    636091 Lofrans’ Thermal Circuit Breaker 120A SM 120
    636092 Lofrans’ Thermal Circuit Breaker 150A SM 150
    Read moreDone

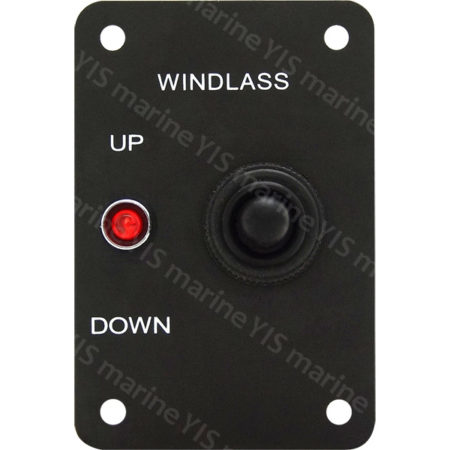

  • WINDLASS CONTROLLING PANEL

    0.00฿

    Code: SP2211

    Features

    →Momentary (ON)-OFF-(ON) Toggle Switch with Rubber Boot

    →Red Lamp Indicator

    Specification

    —Faceplate | Aluminum Plate

    —Circuit Protection | –

    —Switch Ratings | DC12V

    —Panel Rating | 15A @ DC 12V

    —Product Dimensions | (W x H) 52 x 76mm

    —Mounting Depth | 35mm

    —Panel Cut-out (W x L) | 40 x 45 mm

    Certification

    Read moreDone

  • WINDLASS MOTOR

    0.00฿

    Windlass Motor

    Code Model Type Voltage (V) Watt (W)
    633502 Titan-Horizontal Windlass 24 2300
    633503 X4-Vertical Windlass 24 2700
    633509 Scorpion/Marlin/X1-Windlasses 12 500
    633510 T700/Airon/X2 12 700
    633512 X2(<2010)/Kobra-Windlasses 12 1000
    633513 X2(<2010)/Kobra-Windlasses 24 1000
    633526 X2/X3-Vertical Windlasses 24 1500
    634365 Cayman-Horizontal Windlass 12 700
    634367 Cayman-Horizontal Windlass 12 1000
    634369 Tigres-Horizontal Windlass 12 1500
    634370 Tigres-Horizontal Windlass 24 1500
    634371 Falkon-Horizontal Windlass 12 1700
    634372 Falkon-Horizontal Windlass 24 1700
    634375 Project 1000-Vertical Windlass 12 1000
    634387 X2-Vertical Windlass 12 1000
    634390 Dorado/Marlin/X1-Windlasses 12 700



    Read moreDone
