Showing 1–16 of 57 results
Code:14-00001

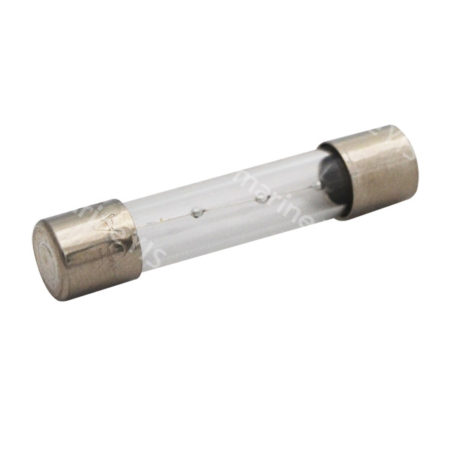

American standard size 0.25” x 1.25”(Φ6.3 x 32.0mm) glass-tube fuses
*Cap Material | Nickel-plated Brass
*Max. Voltage Rating | DC 32V, AC 125V/250V
*Amps Rating | 0.5A, 1A, 1.5A, 2A, 2.5A, 3A, 4A, 5A, 6A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A
*Dimension: Φ6.3×32.0mm
Code:14-00010

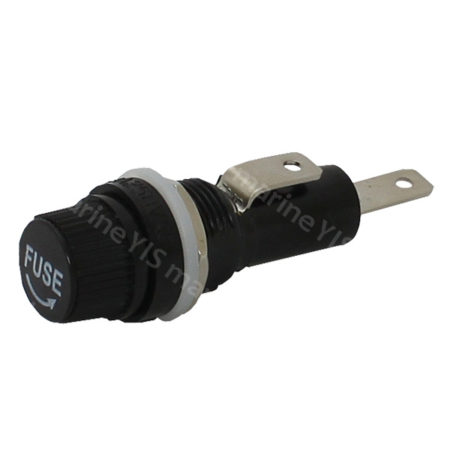

*For 6.3x32mm (AGC or ATE) or 6.3x30mm (JMC or JTG) fuses
*Bakelite body
*Water-resistant screw cap
*0.250” Quick Connect Terminal
*New modern and compact panel design (15% smaller than SP30xx series)
*Backlight modules for labels, allowing easy operation in darkness
*IP66–protect against strong water jets
*Push-reset circuit breakers with rubber boots
*Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)
*Watertight mounting gasket included
*Square shaped label stickers (30pcs) allow vertical or horizontal installation
*1 Battery Gauge (Voltage Meter) & 1 Cig. Lighter Socket
Specification
*Faceplate | 0.1″(2.54mm) Coated Aluminum Alloy
*Circuit Protection | Circuit Breakers
*Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
*Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
8Product Dimensions (W x H) | 114 x 191mm
*Mounting Depth | 75mm
*Panel Cut-out (W x L) | 96 x 166mm
Certification

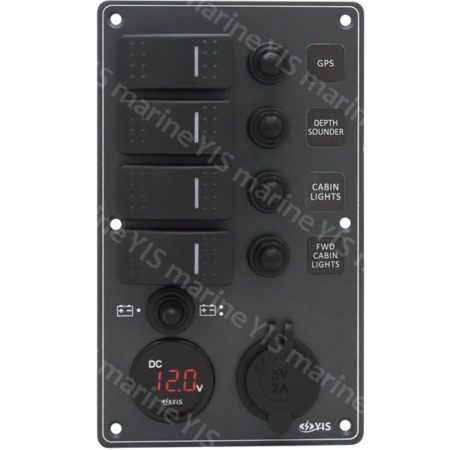

*New modern and compact panel design (15% smaller than SP30xx series)
*Backlight modules for labels, allowing easy operation in darkness
*IP66–protect against strong water jets
*Push-reset circuit breakers with rubber boots
*Illuminated (LED) C-7 rocker switches with dual voltage rating (12V / 24V)
*Watertight mounting gasket included
*Square shaped label stickers (30pcs) allow vertical or horizontal installation
*1 Battery Gauge (Voltage Meter) & 1 USB Charger Socket
Specifications
*Faceplate | 0.1″(2.54mm) Coated Aluminum Alloy
*Circuit Protection | Circuit Breakers
*Switch Ratings | 20A @ DC 12V / 10A @ DC 24V (Dual Voltage)
*Panel Rating | Max Cumulative Amp: 45A (Max possible Amperage for each panel is determined by the lower of total switches ratings or the Max Cumulative Amperage listed above)
*Product Dimensions (W x H) | 114 x 191mm
*Mounting Depth | 75mm
*Panel Cut-out (W x L) | 96 x 166mm
Certification

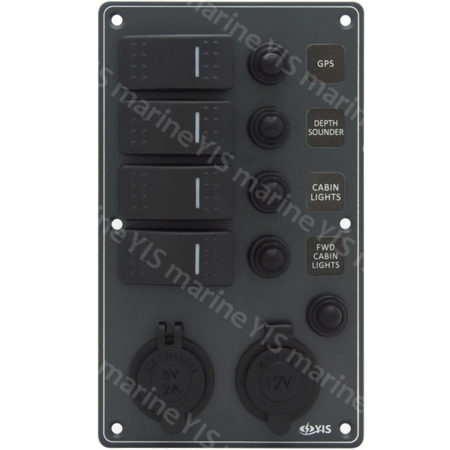

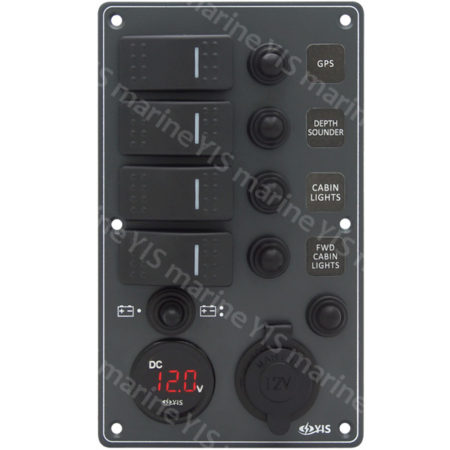

Water-resistant Switch Panel with USB Charger and Cig. Lighter Socket (Dark Gray) *SP3234P-Water-resistant Switch Panel with USB Charger and Cig. Lighter Socket (Dark Gray) *YIS exclusive backlight modules *IP66 rated Coming with the IP66 C-7 sealed rocker Switches, these switch panels can withstand even severer weather conditions than the C-6 Water-resistant Switch Panel. SP32xx series…

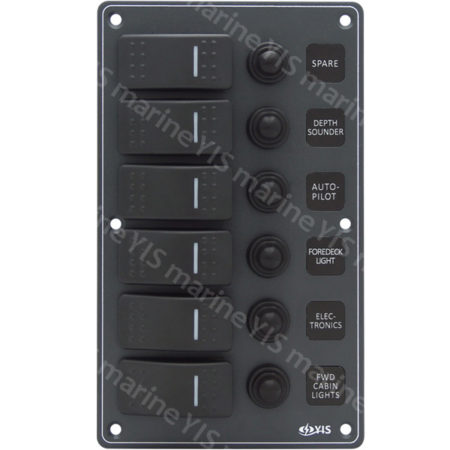

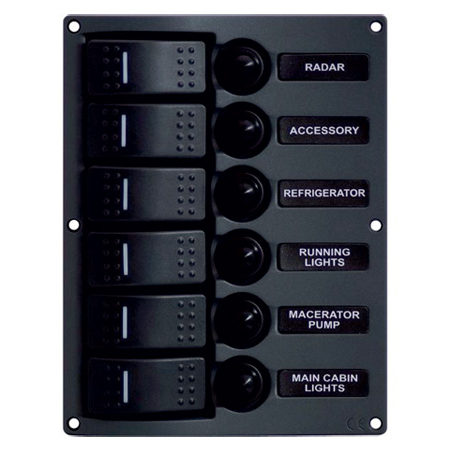

6P Water-resistant Switch Panel with Backlight Modules (Dark Gray) *SP3216P-6P Water-resistant Switch Panel with Backlight Modules (Dark Gray) *YIS exclusive backlight modules *IP66 rated Coming with the IP66 C-7 sealed rocker Switches, these switch panels can withstand even severer weather conditions than the C-6 Water-resistant Switch Panel. SP32xx series are the only aluminum switch panels…

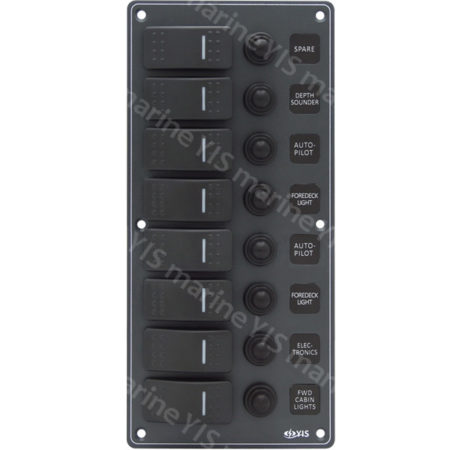

8P Water-resistant Switch Panel with Backlight Modules (Dark Gray) *SP3218P-8P Water-resistant Switch Panel with Backlight Modules (Dark Gray) *YIS exclusive backlight modules *IP66 rated Coming with the IP66 C-7 sealed rocker Switches, these switch panels can withstand even severer weather conditions than the C-6 Water-resistant Switch Panel. SP32xx series are the only aluminum switch panels…

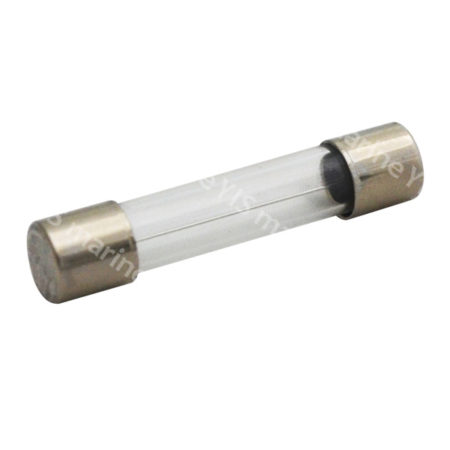

Slow-blow glass-tube fuses American standard size 0.25” x 1.25”(Φ6.3 x 32.0mm) glass-tube fuses Specification Cap Material | Nickel-plated Brass Max. Voltage Rating | AC 250V Amps Rating | 0.1A – 20A Electrical characteristics: 135% – 1 hour maximum 200% – 5 ~120 secs Dimension: Φ6.3×32.0mm Product Coding C-6524 Certification SPST Distributors (ON)-OFF

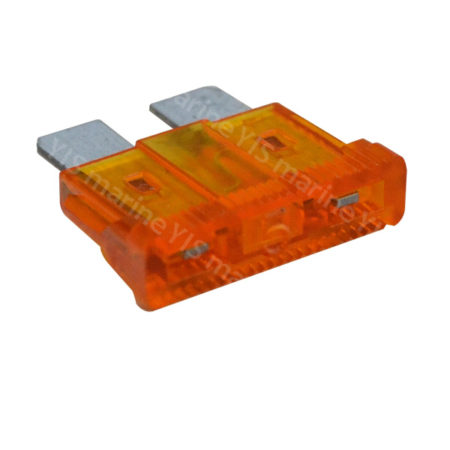

Features Transparent body for easy indication of blown fuse Voltage Rating: DC32V Product Coding Product ID Amps Color Coding F-ATP-1A 1 A Black F-ATP-2A 2 A Gray F-ATP-3A 3 A Violet F-ATP-4A 4 A Pink F-ATP-5A 5 A Tan F-ATP-7.5A 7 A Brown F-ATP-10A 10 A Red F-ATP-15A 15 A Lt. BLUE F-ATP-20A 20 A…
Heavy Duty Brass Toggle Switch Series Heavy Duty Toggle Swtiches widely used in marine applications. These brass toggle switches come in several switch functions and carries currents as high as 15A. Features Current rating up to 15A (@12V DC) Robust and durable toggle design Available in PC (Quick) Terminals or Screw Terminals Series-specific nameplates and…
Heavy Duty Brass Toggle Switch Series Heavy Duty Toggle Swtiches widely used in marine applications. These brass toggle switches come in several switch functions and carries currents as high as 15A. Features Current rating up to 15A (@12V DC) Robust and durable toggle design Available in PC (Quick) Terminals or Screw Terminals Series-specific nameplates and…
T-13 Brass Toggle Switch Water-proof Rubber Boot Features Water-proof, dust proof rubber boot Screw Nuts: M12 Available in Clear/Black color

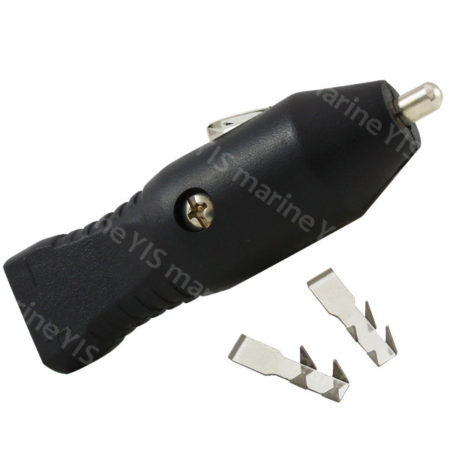

Cigarette Lighter Plug with Quick Insert-and-Lock Terminals AP106-Cigarette Lighter Plug with Quick Insert-and-Lock Terminals Features Unfused Designed for Size A (φ21.0mm)Sockets Amp Rating: 10A “Insert-and-Lock” terminals allowing quick wire assembly (as illustrated) Certification

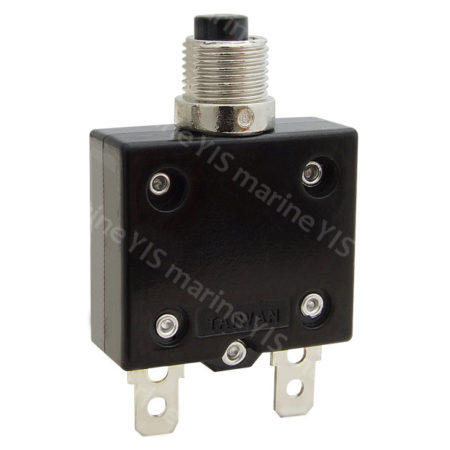

Push-Button Manual Reset Circuit Breaker Features Protecting circuits with currents up to 50A Manual push-reset operation Bushing: Metal M12 x P 1.0 Optional waterproof rubber boot available Specification Voltage Rating | DC 50V, AC 125V/250V Amps Rating | 3A-50A Dielectric Strength | AC 1500V/1 Minute Interrupting Capacity | 1000A @125VAC, 2000A @250VAC Insulation Resistance |…
Digital Voltage Meter *Digital Voltage Meter *With wire output *With Quick Connector Terminals SP-BG1 is a compact size, self-powered, DC voltage monitor with bright 3 digit LED display. SP-BG1 is housed in a uni-body PolyCarbonate case with no opening in the front and completely sealed in the back, providing excellent protection against moisture, dust and…
