Showing 49–64 of 73 results

  • NAVY STANDARD 7.5-PRJ

    0.00฿

    Navy Standard Features

    -The Ritchie Projector/Reflector binnacle compass is specially designed:

    -For mounting in Projector/Reflector Binnacles

    -Dial 7.5″ (192mm) Numerals and degrees acid etched for optical clarity when projected and may be used as a steering compass

    -1 degree increments with cardinal and inner cardinal markings

    -Dial float chamber removes nearly all the weight from pivot and jewel to extend operation by years

    -Bezel machined to accommodate 7.5″ Navy standard azimuth circle or bearing circle

    -Meets or exceeds Solas ISO Class A compass requirements

    -Operating Temperature Range: -22 deg F (-30 deg C) to +175 deg F (+80 deg C)

    -12, 24, 32 VDC and 110 VAC lighting included

    -100% Repairable

    -Exclusive 5-Year Ritchie Warranty

    Approx. Shipping Weight: 16 lb. (7.26 kg)

    Read moreDone

  • NAVY STANDARD 7.5-SB

    0.00฿

    Originally used on Navy and Merchant ships the 7 ½” Navy Standard compasses continues to have the highest grade materials and workmanship.  The bezels are machined to accept the AC-001 Azimuth Circle.  With four configurations the Navy Standard compasses fit most binnacles and steering stations.

    Navy Standard Features:

    -Dial 7.5″ (192mm)

    -Yoke Mount with Quadrantal spheres

    -1 degree increments with cardinal and inner cardinal markings

    -Dial float chamber removes nearly all the weight from pivot and jewel to extend operation by years

    -Navy standard azimuth circle or bearing circle part# AC-0001 available

    -Meets or exceeds Solas ISO Class A compass requirements

    -Operating Temperature Range: -22 deg F (-30 deg C) to +175 deg F (+80 deg C)

    -12, 24, 32 VDC and 110 VAC lighting included

    -100% Repairable

    -Exclusive 5-Year Ritchie Warranty

    Replacement Lighting Kit: NS-0050 ASY

    Approx. Shipping Weight: 43 lbs. (19.5 kg)

    Read moreDone

  • RITCHIEANGLER BRACKET MOUNT

    0.00฿

    Code: RA-91

    RitchieAngler Compass Features

              *2 3/4″ Direct-Reading Dial

              *Easily Adjustable Bracket Mount with Thumbscrews

              *No-Glare Gray Finish with High-Visibility Blue Dial

              *Distinctive RitchieAngler graphics

              *Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement

              *Internal Green Night Lighting

              *Built-in Compensators to Easily Adjust for Deviation

              *Movable Sun Shield

              *DirectiveForce Magnets

              *100% Repairable

              *Exclusive 5-Year Ritchie Warranty

    Protective Cover: None

    Replacement Lighting:

    • 6 Volt: EX-0099-2
    • 12 Volt: EX-0005-2
    • 24 Volt: EX- 0098
    • 12 Volt Light & Wire Assembly: EX-0022 ASY

    Replacement Bracket: EX-0073 XSP

    Replacement Thumbscrews: EX-0081 XSP

    Approx. Shipping Weight: 1 lb. (454g)

    Notes: Comes standard with 12 volt lighting.

    Some custom built OEM models may have different lighting. Contact Ritchie for replacement lighting.

    Read moreDone

  • RITCHIEANGLER SURFACE MOUNT

    0.00฿

    Code: RA-93

    RitchieAngler Compass Features

              *2 3/4″ Direct-Reading Dial

              *Surface Mount with Push-Button Removal for Quick Storage and Security

              *No-Glare Gray Finish with High-Visibility Blue Dial

              *Distinctive RitchieAngler graphics

              *Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement

              *Internal Green Night Lighting

              *Built-in Compensators to Easily Adjust for Deviation

              *Movable Sun Shield

              *DirectiveForce Magnets

              *100% Repairable

              *Exclusive 5-Year Ritchie Warranty

    Protective Cover: E-50-C

    Replacement Lighting:

              *6 Volt: EX-0099-2

              *12 Volt: EX-0005-2

              *24 Volt: EX- 0098

              *12 Volt Light & Wire Assembly: EX-0022 ASY

    Approx. Shipping Weight: 1 lb. (454g)

    Notes: Comes standard with 12 volt lighting.

    Some custom built OEM models may have different lighting. Contact Ritchie for replacement lighting.

    Read moreDone

  • RITCHIESPORT AUTO BRACKET MOUNT

    0.00฿

    Code: X-10-A

    RitchieSport Compass Features

             *2″ Direct-Reading, High Visibility Dials

             *Two-Sided, Self-Adhesive Mounting Pads Included

             *Reversible Bracket allows a mounting range of over 300 degrees from overhead, through angled and vertical mounts to horizontal surfaces

             *These mounting position options and your choice of mounting hardware permit mounting on everything from windshield or supporting frame structures, to slanted dashboards and consoles, to almost any flat, angled or vertical surface

             *Internal Green Night Lighting

             *High Temp Composite Construction for Extended Operating Range

             *Hardened Steel Pivot and Sapphire Jewel Movement

             *Built-in Compensators

             *Color: Gray

             *Exclusive 5-Year Ritchie Warranty

    Replacement Lighting: RS-0105 XSP

    Replacement Bracket: RS-0003

    Approx. Shipping Weight: 5 oz. (142g)

    Notes: Comes standard with 12 volt lighting.
    For all X-10’s built between 1991 and 1999 use the part number RS-0004 XSP for replacement lighting.

    Read moreDone

  • RITCHIESPORT BRACKET MOUNT

    0.00฿

    RitchieSport Compass Features

              *2″ Direct-Reading, High Visibility Dials

              *Two-Sided, Self-Adhesive Mounting Pads Included

              *Reversible Bracket allows a mounting range of over 300 degrees from overhead, through angled and vertical mounts to horizontal surfaces

              *These mounting position options and your choice of mounting hardware permit mounting on everything from windshield or supporting frame structures, to slanted dashboards and consoles, to almost any flat, angled or vertical surface

              *Internal Green Night Lighting

              *High Temp Composite Construction for Extended Operating Range

              *Hardened Steel Pivot and Sapphire Jewel Movement

              *Built-in Compensators

              *Exclusive 5-Year Ritchie Warranty

    Replacement Lighting: RS-0105 XSP

    Replacement Brackets: Gray, Black, or White

    Approx. Shipping Weight: 5 oz. (142g)

    Notes: Comes standard with 12 volt Green LED lighting.
    For all X-10’s built between 1991 and 1999 use the part number RS-0004 XSP for replacement lighting.

    Read moreDone

  • RITCHIESPORT DASH MOUNT

    0.00฿

    RitchieSport Compass Features

                 *2″ (5.08 cm) Direct Reading Dial

                 *Easily Installed, Fits Standard 2 1/16″ (5.50 cm) Instrument Hole

                 *View Adjusts up to 30 degrees

                 *Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement

                 *Exclusive Built-in Green NiteVu Lighting

                 *High Temperature Composite Construction for Extended Operating Range

                 *DirectiveForce Magnets

                 *Exclusive 5-Year Ritchie Warranty

    Replacement Lighting:RS-0148 GRN

    Approx. Shipping Weight: 5 oz. (142g)

    Notes: X-21 Compasses do not have Built-in Compensators.

    Comes standard with 12 volt Green lighting. Some custom built OEM models may have different color lighting.

             -12V Red – RS-0148 RED

             -12V Clear – RS-0148 WHT

             -12V Blue –  RS-0148 BLU

    Read moreDone

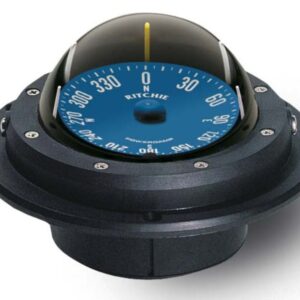

  • RU-90 VOYAGER FLUSH MOUNT

    0.00฿

    Code: RU-90

    Voyager Small Sailboat Features

              *High-Visibility Blue 3″ Dial with Extra Large Numerals

              *Easily Installed.

             *Internal Gimbal

             *Optional NiteVu Lighting

             *45 & 90 Degree Lubber Lines

             *45 Degree Heel Angle

             *100% Repairable

             *Exclusive 5-Year Ritchie Warranty

    Optional Lighting Kit: VL-100(12V Green)

    Mounting Gasket: VY-0164

    Approx. Shipping Weight: 1 lb. 4 oz. (567g)

    Notes: For RU-90s with Optional Lighting Kit installed, use Protective Cover part# V-80-C

    Read moreDone

  • SPORTABOUT HANDHELD

    0.00฿

    Code: X-11Y

    SportAbout Hand Bearing Compass Features

                *Easy to Read 2″ Direct-Reading Dial

                *Hardened Steel Pivot and Sapphire Jewel Movement

                *Built-in Roller Diaphragm for Extended Temperature Operating Range

                *International Safety Yellow Case

                *Silicon Impact Resistant Case with Neck Lanyard

                *Compact Size for Easy Handling and Storage

                *QuickSight V-Notch and Lubber Line for Easy Heading Alignment

                *Non-Electric Chem Sticks Provide 18 Hours of Night Lighting

                *Holder Available in Black or White. Ideal for Deck Mounting SportAbout Compasses on Small Boats

                  Sportabout X-11Y art

    Replacement Lighting: RS-0051-4

    Approx. Shipping Weight: 1 lb. (454g)

    Read moreDone

  • SPORTABOUT WITH TIE DOWN

    0.00฿

    Code: X-11Y-TD

    X-11Y-TD Features

             *Ritchie SportAbout X-11Y compass included with X-TD Tie-down mounting.

             *No Drilling, No Holes in Deck.

             *Flexible Pad and Foam Ring Easily Conforms to Deck Shape.

             *Won’t Scratch Finishes.

             *Attaches with Bungee Cord and Clips (included).

    Replacement Lighting: RS-0051-4

    Approx. Shipping Weight: 1 lb. (454g)

    Read moreDone

  • SUPER YACHT 5″ COMPASSES

    0.00฿

    The Super Yacht Series offers a unique blend of polished bronze or chromed bronze bezels, dial bushings and modern Ritchie compass technology. These materials combine elegance and workmanship in this high quality Super Yacht Series of compasses.

    Bezel engraving is available in thirty-four standard fonts or you can have a personalized engraving added. This customization takes 3 weeks.

    Each compass is marked with a sequential coined serial number which is recorded at the factory.

    The SY-500 models have either LL (low level lighting) or PL (power lighting). Voltages available are 12, 24 and 32.

    You have a choice of three dial styles:

    – G-2; 2 degree with no points

    -G-2; 2 degree with points

    -G-5; 5 degree

    The Super Yacht compass offerings are an example of Ritchie’s commitment to innovation, quality and reliability.

    Read moreDone

  • SUPERSPORT DASH MOUNT

    0.00฿

    The SuperSport SS-PR2 is designed primarily for power boats 16 ft. (4.88m) to 35 ft (10.66m) in length. Features Include:

                   *3 3/4″ (9.35 cm) CombiDial

                   *4 5/8″ (118 mm) to 4 13/16″ (122 mm) mounting hole.

                   *Vertical Mounting Angle Through 40 Degrees.

                   *Blue LED Night Lighting

                   *Compensators Included

                   *Adapter plate available to retrofit existing HV-76 and HV-77 installations.

                   *Protective Front Cover Included

                   *Exclusive 5-Year Ritchie Warranty

    Protective Cover: Included: BK-0019 ASY

    Replacement Lighting: SH-0243 ASY (12 – 24 Volts)

    Approx. Shipping Weight: 2 lb. (907g)

    Notes: 12/24 Volt lighting is standard, 32 Volt option is available.



    Read moreDone

  • SUPERSPORT FLUSH MOUNT 3 3/4″

    0.00฿

    Supersport™ Compasses

    Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial.  This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

                 *3 3/4″ PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals

                 *Easily Installed, Fits 4″ (10.16 cm) Mounting Hole.

                 *Built-in Compensators to Easily Adjust for Deviation

                *Built-in 12V Green LED lighting in Movable Sun Shield

                *45 Degree Lubber Lines

                *Adapter Rings Available. Sold separately. 6″ (15.24). Retrofits Existing Mounting Hole for Model No. SS-1002 order H-ABLK. For Model No. SS-1002W order H-AWHT.

               *100% Repairable

              *Exclusive 5-Year Ritchie Warranty

    Protective Cover: H-741-C

    Replacement Lighting:

    • (12V Green) SH-0195 KIT
    • (12V Red) SH-0202 KIT

    Mounting Gasket: HL-0219

    • Use HL-0105 mounting gasket when an adapter ring is installed on the compass

    Approx. Shipping Weight: 2 lbs. (907g)

    Notes: 24 & 32 volt lighting options are available. Some custom built OEM models may have different lighting.

    Read moreDone

  • SUPERSPORT FLUSH MOUNT 4 1/2″

    0.00฿

    Supersport™ Compasses

    Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial.  This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

                 *4 1/2″ PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals

                 *Easily Installed, Fits 4.75″ (12.06 cm) to 5.125″ (13.02 cm)  Mounting Hole.

                 *Built-in Compensators to Easily Adjust for Deviation

                 *Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions

                 *12V Green LED lighting standard

                 *45 Degree Lubber Lines

                 *100% Repairable

                 *Exclusive 5-Year Ritchie Warranty

    Protective Cover: N-203-C

    Replacement Lighting:

    • (12V Green) SH-0176 XSP
    • (12V Red) SH-0174 XSP

    Mounting Gasket: NV-0175

    Approx. Shipping Weight: 2 lbs. 10 oz. (1.19 kg)

    Notes: Comes standard with 12V lighting. 24 & 32 volt lighting options are available. Some custom built OEM models may have different lighting.



    Read moreDone

  • SUPERSPORT FLUSH MOUNT 5″

    0.00฿

    Supersport™ Compasses

    Developed for and tested on offshore race boats the SuperSport Series compasses feature the PowerDamp® Plus dial.  This dial technology features the PowerDamp® dial skirt to prevent oscillation, larger DirectiveForce™ magnets for quick lock on and extra-large steel pivots and jewels for smooth fast action.

    • 5″ PowerDamp Plus, High-Visibility Blue Dial with Extra Large White Numerals
    • Easily Installed, Fits 6 1/4″ (15.88 cm) Mounting Hole.
    • Built-in Compensators to Easily Adjust for deviation
    • Internal Gimbal Systems for Maximum Stability During Adverse Pitch and Roll Conditions
    • 12V Green LED lighting Standard
    • 100% Repairable
    • Exclusive 5-Year Ritchie Warranty

    Protective Cover: LL-C

    Replacement Lighting Kits:

    • (12V Green)CS-0002 KIT
    • (12V Red)CS-0003 KIT

    12 volt lighting standard – 24 & 32 volt lighting options are available.

    Mounting Gasket: 5G-0043

    Approx. Shipping Weight: 5 lbs 12 oz (2.6 kg)

    NOTES: SS-5000s built prior to 1992 may have used different replacement lighting. See service manual pages 7-32 & 7-33 or contact our Service Department at 781-709-3202.

    Read moreDone

  • TREK BRACKET MOUNT

    0.00฿

    Trek Compass Features

                *Ideal for Runabouts, Center Consoles, Ski Boats, Flats Boats, Bass Boats, Cars, Trucks, RV’s and ATV’s

                *2 1/4″ Direct Reading Dial with Large Numerals for Easy Reading

                *Strong Directive Force Magnets and Composite Dial for Fast Performance

                *Built-in Compensators to Correct for Deviation

                *Extra Large Diaphragm and Rugged Construction Provide Extended Operating Temperature Range

               *High-Impact Rubber Accent Strip

               *Built-in, 12-Volt Green NiteVu Lighting

               *100% Repairable

               *Exclusive 5-Year Ritchie Warranty

    Replacement Lighting:

    • SH-0268 ASY (TR-31, TR-31G, TR-31W)
    • EX-0022 TMP (TR-31B, TR-31S)

    Replacement Bracket: Black, White, Gray, Breakup Camouflage, Shadow Camouflage

    Approx. Shipping Weight: 9 oz. (256g)

    Notes: Comes standard with 12 volt lighting.

    For all Trek models built before 2004 Rev 1 use replacement light part number EX-0022 TMP

    Read moreDone
